SiSiB® FSE9100
SiSiB® FSE9100

Economic Fluoro Silicone Rubber

SiSiB® FSE9100 fluorosilicone is a base compound to be considered for applications exposed to non-polar fluids and solvents including fuels, oils and greases.


SiSiB® FSE9100

Technical Data


Properties / Product

FSE9130

FSE9140

Method

Density g/cm³

1.30

1.31

ASTM D792

Hardness Shore A

30

40

ASTM D2240

Tensile Strength (MPa) Die C

6.0

7.5

ASTM D412

Elongation at Break (%) Die C

350

400

ASTM D412

Tear Strength (KN/m) Die B

20

25

ASTM D624

Compression Set (22h/177°C)/%

18

15

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


135

130

ASTM D471



Properties / Product


Properties / Product


FSE9160

FSE9180

Method

Density g/cm³

1.33

1.40

ASTM D792

Hardness Shore A

60

80

ASTM D2240

Tensile Strength (MPa) Die C

7.0

5.5

ASTM D412

Elongation at Break (%) Die C

250

175

ASTM D412

Tear Strength (KN/m) Die B

25

18

ASTM D624

Compression Set (22h/177°C)/%

16

18

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


125

125

ASTM D471




Curing agent: 0.55 pbw 2,5-dimethyl-2,5-di(tert-butylperoxy)hexane (DHBP).

Curing conditions: 10min/170˚C, post-curing: 4h/200˚C in hot air


Applications

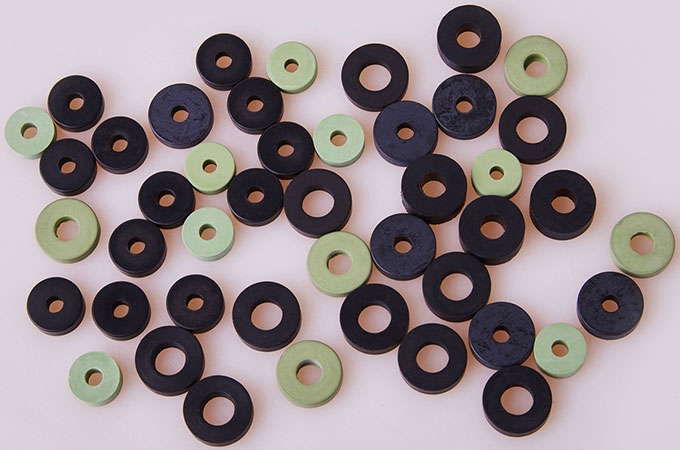

  • SiSiB® FSE9100 with fluorosilicone rubber properties, is used for general purpose molded, extruded, and calendered parts including O-rings, gaskets, fuel-line quick-connect seals, oil seals, sealing strips, diaphragms, membranes, valves, hydraulic and electrical clamp blocks.


  • It mainly used in automobile industry, aerospace industry, petroleum chemical industry and military industry.


Packing and Storage



  • In the unopened original container it has a shelf life of one year in a dry and cool place.
