SiSiB® FSE9800
SiSiB® FSE9800

Low Compression Set Fluoro Silicone Rubber

SiSiB® FSE9800 fluorosilicone is a base compound to be considered for applications exposed to non-polar fluids and solvents including fuels, oils and greases.


SiSiB® FSE9800

Technical Data


Properties / Product

FSE9830

FSE9840

Method

Density g/cm³

1.42

1.43

ASTM D792

Hardness Shore A

30

40

ASTM D2240

Tensile Strength (MPa) Die C

9.0

10.0

ASTM D412

Elongation at Break (%) Die C

300

350

ASTM D412

Tear Strength (KN/m) Die B

20

25

ASTM D624

Compression Set (22h/177°C)/%

8

7

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


22

20

ASTM D471


Properties / Product

FSE9860

FSE9880

Method

Density g/cm³

1.48

1.50

ASTM D792

Hardness Shore A

60

80

ASTM D2240

Tensile Strength (MPa) Die C

10.5

9.0

ASTM D412

Elongation at Break (%) Die C

300

175

ASTM D412

Tear Strength (KN/m) Die B

25

18

ASTM D624

Compression Set (22h/177°C)/%

8

9

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


19

19

ASTM D471


Curing agent: 0.55 pbw 2,5-dimethyl-2,5-di(tert-butylperoxy)hexane (DHBP).

Curing conditions: 10min/170˚C, post-curing: 4h/200˚C in hot air



Application

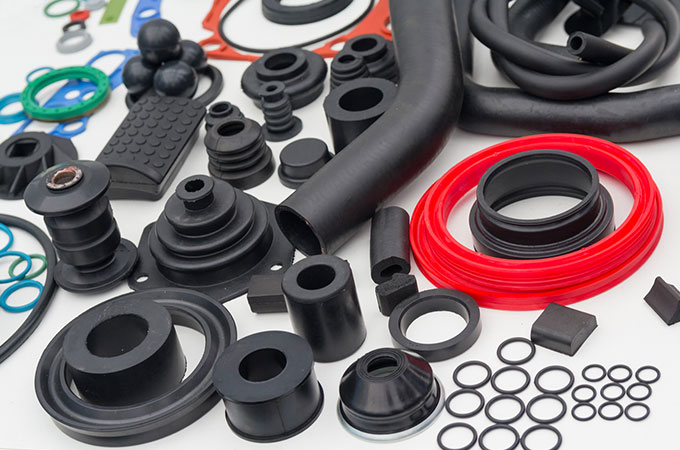

  • SiSiB® FSE9800 fluorosilicone rubber sheet is widely used in automobile industry, aerospace industry, petroleum chemical industry and military industry.


  • SiSiB® FSE9800 is used for low compression molded, extruded, and calendered parts, like O-rings, gaskets, fuel-line quick-connect seals, oil seals, sealing strips, diaphragms, membranes, valves, hydraulic and electrical clamp blocks.


Packing and Storage



  • In the unopened original container it has a shelf life of one year in a dry and cool place.
