SiSiB® HR6100
SiSiB® HR6100

Oil Resistant Heat Cured Silicone Rubber

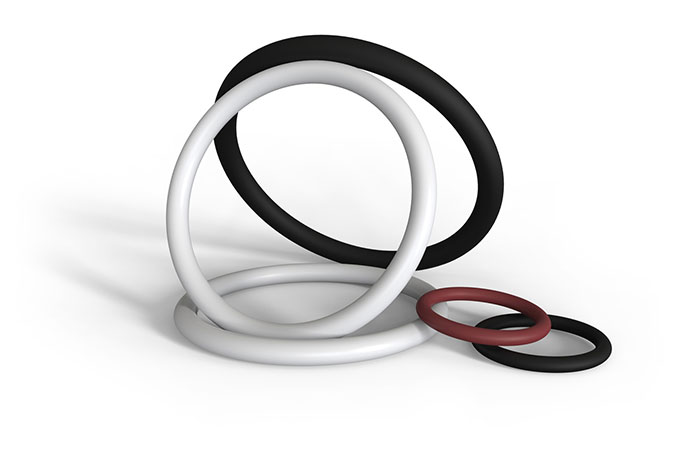

SiSiB® HR61xx is oil-resistance silicone rubber used for sealing products, tubes or other parts. It is suitable for molding and extrusion.


SiSiB® HR6100

Technical Data


Product

HR6130

HR6140

HR6150

Appearance

Off-white

Off-white

Off-white

Hardness (Shore A)

30+/-3

40+/-3

50+/-3

Tensile Strength (MPa)

Min.4.0

Min.4.0

Min.6.0

Elongation (%)

Min. 400

Min. 350

Min. 300

Tensile Set (%)

Max. 8.0

Max. 8.0

Max. 8.0

Tear Strength (KN/m)

Min. 8.0

Min. 10.0

Min. 12.0

Curing Agent

C-8

C-8

C-8

Curing Agent Content

2.0%

2.0%

2.0%

Curing Condition

170°C×5min

170°C×5min

170°C×5min


Product

HR6160

HR6170

HR6175

Appearance

Off-white

Off-white

Off-white

Hardness (Shore A)

60+/-3

70+/-3

75+/-3

Tensile Strength (MPa)

Min.5.0

Min.6.0

Min.4.0

Elongation (%)

Min. 200

Min. 150

Min. 80

Tensile Set (%)

Max. 8.0

Max. 8.0

Max. 8.0

Tear Strength (KN/m)

Min. 12.0

Min. 12.0

Min. 10.0

Curing Agent

C-8

C-8

C-8

Curing Agent Content

2.0%

2.0%

2.0%

Curing Condition

170°C×5min

170°C×5min

170°C×5min



Application

Packing and Storage



  • In the unopened original container it has a shelf life of one year in a dry and cool place.


Documents

DownloadSiSiB® HR6100 Technical Data Sheet
