SiSiB® FSE9700
SiSiB® FSE9700

General Fluoro Silicone Rubber for Extrusion

SiSiB® FSE9700 fluorosilicone is a base compound to be considered for applications exposed to non-polar fluids and solvents including fuels, oils and greases.


SiSiB® FSE9700

Technical Data


Properties / Product

FSE9750

FSE9760

Method

Density g/cm³

1.46

1.48

ASTM D792

Hardness Shore A

50

60

ASTM D2240

Tensile Strength (MPa) Die C

9.0

9.0

ASTM D412

Elongation at Break (%) Die C

300

350

ASTM D412

Tear Strength (KN/m) Die B

20

25

ASTM D624

Compression Set (22h/177°C)/%

18

20

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


22

20

ASTM D471


Properties / Product

FSE9780


Method

Density g/cm³

1.48


ASTM D792

Hardness Shore A

80


ASTM D2240

Tensile Strength (MPa) Die C

7.0


ASTM D412

Elongation at Break (%) Die C

300


ASTM D412

Tear Strength (KN/m) Die B

25


ASTM D624

Compression Set (22h/177°C)/%

25


ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


19


ASTM D471


Curing agent: 0.55 pbw 2,5-dimethyl-2,5-di(tert-butylperoxy)hexane (DHBP).

Curing conditions: 10min/170˚C, post-curing: 4h/200˚C in hot air


Application

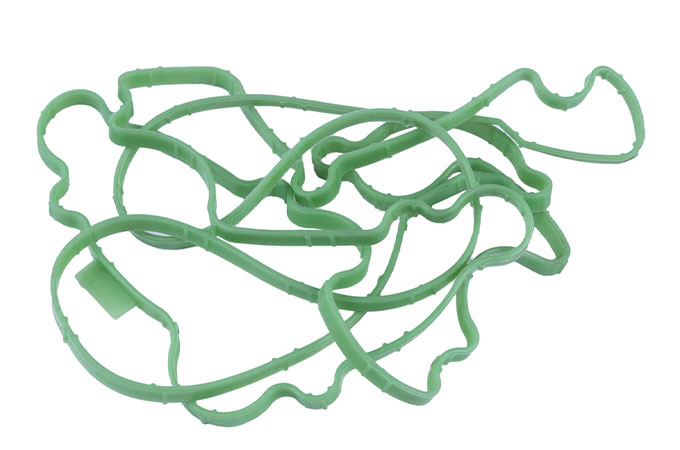

  • SiSiB® FSE9700 fluoro silicone rubber is used for extrusion application. It can be used to produce pipes, sealing stripes, and special-shaped parts for contacting petroleum oil, lubricant oil, hydraulic oil, transformer oil, and polar chemical reagents in low temperature and/or high temperature.


  • SiSiB® FSE9700 is widely used in automobile industry, aerospace industry, petroleum chemical industry and military industry.


Packing and Storage



  • In the unopened original container it has a shelf life of one year in a dry and cool place.
