SiSiB® LR2500
SiSiB® LR2500

LSR for Electrical Insulator

SiSiB® LR2500 series are paste-like, easily pigmentable two-component liquid silicone rubber for injection molding process. They are designed for manufacturing insulator with good mechanical properties as well as excellent dielectrical behavior.


SiSiB® LR2500

Technical Data


Product

LR2531

LR2535

LR2540

Appearance

Light grey

Light grey

Light grey

Mix Ratio

10:1

1:1

1:1

Viscosity A (Pa.s)

20

30-40

40-70

Viscosity B (Pa.s)

1-3

30-40

40-70

Mixed Viscosity (Pa.s)

15-21

30-40

40-70

Curing Initiation Temperature (oC)


105

105

Pot life @ 23oC

70 Min

2 Days

2 Days

Density (g/cm3)

1.04-1.14

1.03-1.13

1.03-1.13

Hardness (Shore A)

27-35

33-38

38-43

Tensile Strength (MPa)

5.5

Min. 6

Min. 6

Elongation (%)

450

Min. 400

Min. 300

Tear Strength (kN/m)

Min. 10

Min. 11

Min. 10

Dielectric Strength

(1mm-sheet) (KV/mm)

Min. 22

Min. 23

Min. 23

Volume Resistivity (Ω.cm)

1015

1015

1015

Permittivity 50Hz

2.8-3.0

2.8-3.0

2.8-3.0

Dissipation Factor 50Hz

0.0016

0.0016

0.0016

Arc Resistance

Min. 300s

Min. 300s

Min. 300s

Tracking Resistance

1A3.5

1A4.5

1A4.5

Flammability

FV 1

FV 0

FV 1

Processing

Casting

Injection

Injection


Product

LR2540FR

LR2545

Appearance

Light grey

Light grey

Mix Ratio

1 : 1

1 : 1

Viscosity A (Pa.s)

40-70

70-90

Viscosity B (Pa.s)

40-70

70-90

Mixed Viscosity (Pa.s)

40-70

70-90

Curing Initiation Temperature (oC)

105

105

Pot life @ 23oC

2 Days

2 Days

Density (g/cm3)

1.03-1.13

1.03-1.13

Hardness (Shore A)

38-43

44-50

Tensile Strength (MPa)

Min. 7

Min. 7.2

Elongation (%)

Min. 380

Min. 440

Tear Strength (kN/m)

Min. 12

Min. 15

Dielectric Strength

(1 mm-sheet) (kN/m)

Min. 23

Min. 23

Volume Resistivity (Ω.cm)

1015

1015

Permittivity 50Hz

2.8-3.0

2.8-3.0

Dissipation Factor 50Hz

0.0016

0.0016

Arc Resistance

Min. 300s

Min. 300s

Tracking Resistance

1A4.5

1A6.0

Flammability

FV 0

FV 0

Processing

Injection

Injection


Curing condition: 10 minutes at 165°C.


Application

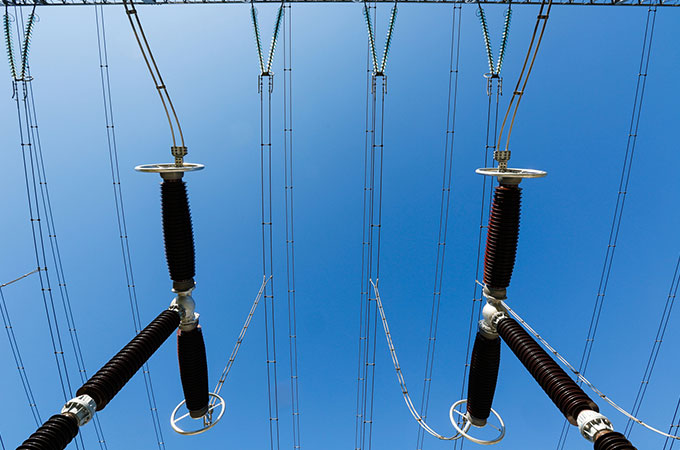

  • Suspension and long rod insulators and hollow core insulators



Packing and Storage


  • SiSiB® LR2500 is supplied in 20Kg box, with plastic bag inside.


  • In the unopened original container it has a shelf life of one year in a dry and cool place.
