SiSiB® FSE9300
SiSiB® FSE9300

High Tear Strength Fluoro Silicone Rubber

SiSiB® FSE9300 fluorosilicone is a base compound to be considered for applications exposed to non-polar fluids and solvents including fuels, oils and greases.


SiSiB® FSE9300

Technical Data


Properties / Product

FSE9330

FSE9340

Method

Density g/cm³

1.42

1.43

ASTM D792

Hardness Shore A

30

40

ASTM D2240

Tensile Strength (MPa) Die C

9.5

11.0

ASTM D412

Elongation at Break (%) Die C

350

400

ASTM D412

Tear Strength (KN/m) Die B

40

45

ASTM D624

Compression Set (22h/177°C)/%

14

12

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


22

21

ASTM D471


Properties / Product

FSE9360

FSE9340

Method

Density g/cm³

1.48

1.50

ASTM D792

Hardness Shore A

60

80

ASTM D2240

Tensile Strength (MPa) Die C

10.5

9.0

ASTM D412

Elongation at Break (%) Die C

350

250

ASTM D412

Tear Strength (KN/m) Die B

42

30

ASTM D624

Compression Set (22h/177°C)/%

14

16

ASTM D395

Volume Change (Reference Fuel B)

(23°C x 70hr)


20

20

ASTM D471


Curing agent: 0.55 pbw 2,5-dimethyl-2,5-di(tert-butylperoxy)hexane (DHBP).

Curing conditions: 10min/170˚C, post-curing: 4h/200˚C in hot air


Application

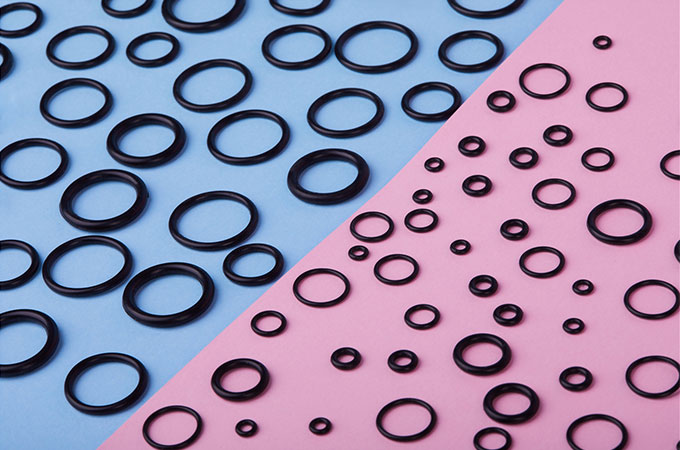

  • SiSiB® FSE9300, as fluorosilicone elastomer, is used for applications as sealing materials for petroleum oil, lubricant oil, hydraulic oil, transformer oil, and apolar chemical reagents in low temperature and/or high temperature environments.


Packing and Storage



  • In the unopened original container it has a shelf life of one year in a dry and cool place.
